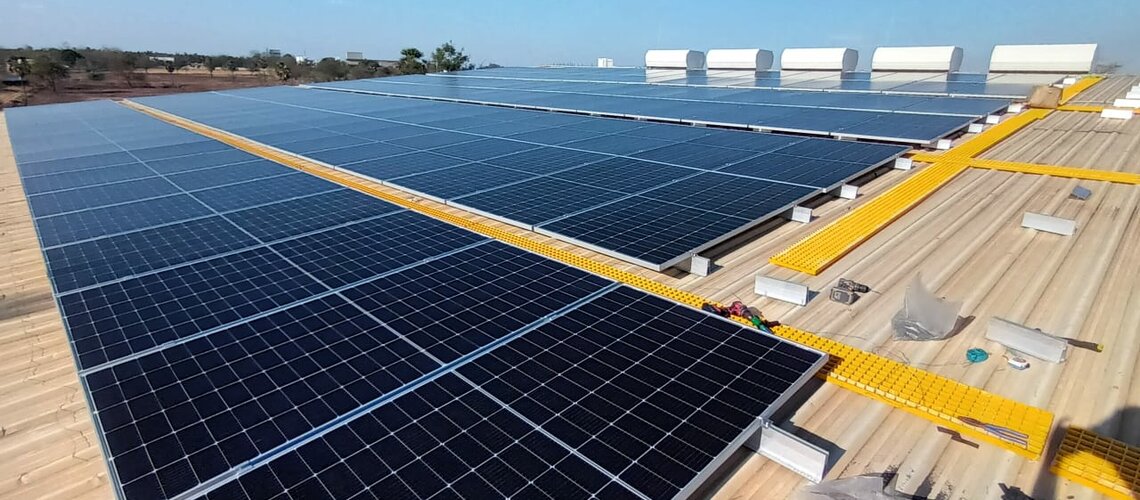

The project is a 250 kWp on-grid solar rooftop system designed to generate clean and renewable electricity, directly supplying power to the connected load and exporting excess to the utility grid. The system uses 455 Vikram PV modules, each rated at 550 Wp, totaling a DC capacity of 250.25 kWp. Power conversion is handled by two Sungrow SG110CX string inverters, known for their high efficiency, reliability, and advanced monitoring capabilities. The DC side of the system includes four 8-in 8-out DCDBs without DC surge protection devices (SPDs), which aggregate input from multiple module strings and route them safely to the inverters. On the AC side, the output from both inverters is fed into a single 2-in 1-out ACDB, equipped with a 4-pole, 250A MCCB, ensuring proper protection and distribution of the generated power. This on-grid solar setup is ideal for reducing electricity bills, lowering carbon emissions, and contributing to a sustainable energy future.
